Designing a PCB (Printed Circuit Board) requires careful consideration of various rules and best practices to ensure the final product functions correctly, is manufacturable, and meets industry standards. Here are some of the top rules to follow in PCB design:

1. Understand the Requirements

• Clearly define the electrical, mechanical, and environmental requirements of the PCB.
• Know the specifications for power, signal integrity, thermal management, and physical constraints.

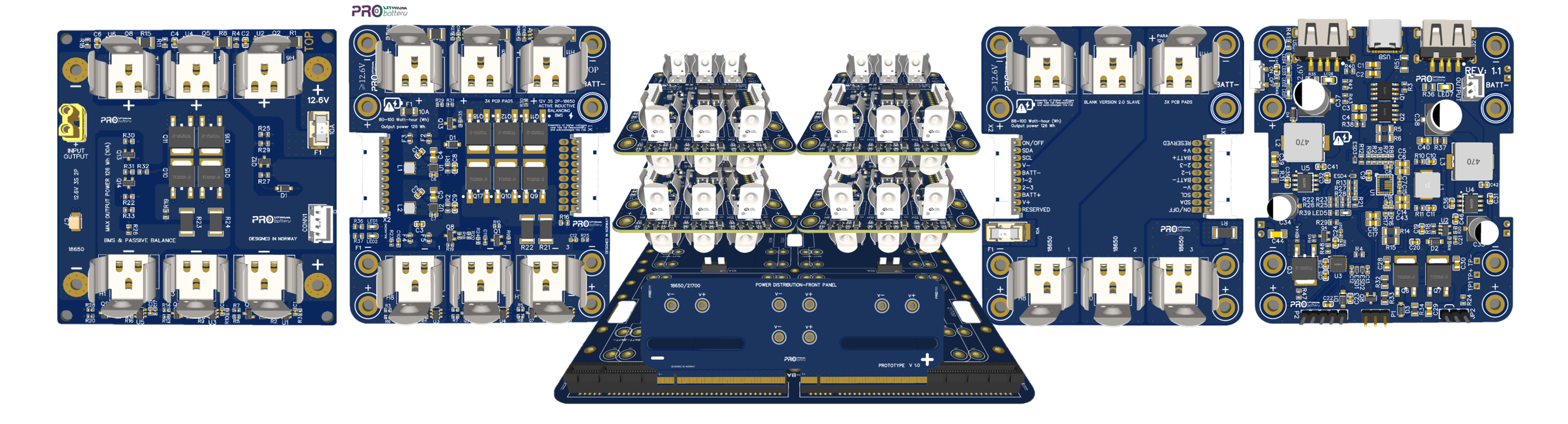

2. Component Placement

• Prioritize Placement: Place critical components like microcontrollers, power supplies, and connectors first.
• Orientation Consistency: Ensure similar components are oriented in the same direction to simplify assembly and reduce errors.
• Clearances: Maintain adequate clearances between components for thermal management and electrical isolation.
• Mechanical Constraints: Consider the physical dimensions and mounting holes, and ensure components don’t interfere with enclosures or other hardware.

3. Routing and Signal Integrity

• Shortest Paths: Route critical signals (e.g., clock, reset, high-speed data lines) using the shortest and most direct paths.
• Trace Widths: Use appropriate trace widths based on current carrying requirements and impedance control. Utilize online calculators or design rules provided by PCB manufacturers.
• Ground Planes: Use ground planes to reduce noise and improve signal integrity. Ensure a solid and continuous ground plane under high-speed signals.
• Differential Pairs: For high-speed differential signals, maintain consistent trace spacing and length matching to minimize skew and signal degradation.
• Avoid 90-Degree Angles: Use 45-degree angles or curved traces to reduce signal reflections and maintain signal integrity.

4. Power Distribution

• Power Planes: Use power planes or wide traces for power distribution to minimize voltage drops and inductance.
• Decoupling Capacitors: Place decoupling capacitors close to power pins of ICs to filter out noise and provide stable power.
• Power Trace Widths: Ensure power traces are wide enough to handle the required current without excessive heating.

5. Thermal Management

• Heat Dissipation: Place heat-generating components like power regulators and processors where heat can be effectively dissipated. Use thermal vias, heatsinks, and copper pours to aid in heat dissipation.
• Thermal Relief: Use thermal relief pads for through-hole components connected to planes to facilitate soldering.

6. Design for Manufacturability (DFM)

• Panelization: Consider how your PCB will be panelized for manufacturing to optimize space and reduce costs.
• Clearances: Adhere to the manufacturer’s design rules for minimum trace widths, spacings, hole sizes, and annular rings.
• Fiducials: Include fiducial marks for automated optical inspection (AOI) and alignment during assembly.
• Test Points: Provide accessible test points for in-circuit testing (ICT) and debugging.

7. Design Rule Check (DRC)

• Automated Checks: Run DRC in your PCB design software to catch errors related to spacing, trace width, and clearances.
• Electrical Rules Check (ERC): Ensure proper connections and polarity for power and signal lines.

8. Documentation and Review

• Comprehensive Documentation: Prepare detailed documentation, including schematics, BOM (Bill of Materials), assembly drawings, and test procedures.
• Peer Review: Have your design reviewed by peers to catch potential issues and verify adherence to design rules.

9. Compliance and Standards

• Regulatory Standards: Ensure your design complies with relevant industry standards (e.g., IPC, RoHS, UL).
• Electromagnetic Compatibility (EMC): Design with EMC considerations to minimize electromagnetic interference (EMI) and ensure compliance with regulatory requirements.

10. Prototyping and Testing

• Prototype First: Always create and test prototypes before moving to full production to catch and resolve issues early.
• Iterative Testing: Conduct thorough testing, including functional, thermal, and stress tests, and iterate on the design as needed.
